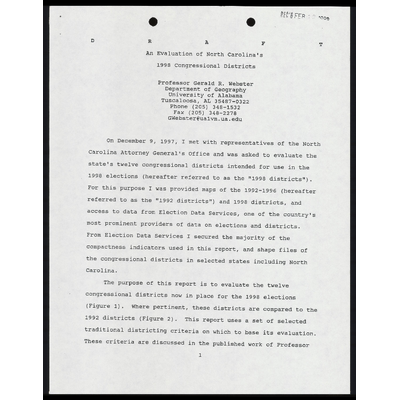

An Evaluation of North Carolina's

1998 Congressional Districts

Professor Gerald R. Webster
Department of Geography
University of Alabama

Tuscaloosa, AL 35487-0322
Phone (205) 348-1532
Fax (205) 348-2278

GWebster@ualvm.ua. edu

On December 9, 1997, I met with representatives of the North

Carolina Attorney General's Office and was asked to evaluate the

state's twelve congressional districts intended for use in the

1998 elections (hereafter referred to as the "1998 districts").

For this purpose I was provided maps of the 1992-1996 (hereafter

referred to as the "1992 districts") and 1998 districts, and

access to data from Election Data Services, one of the country's

most prominent providers of data on elections and districts.

From Election Data Services I secured the majority of the

compactness indicators used in this report, and shape files of

the congressional districts in selected states including North

Carolina.

The purpose of this report is to evaluate the twelve

congressional districts now in place for the 1998 elections

(Figure 1). Where pertinent, these districts are compared to the

1992 districts (Figure 2). This report uses a set of selected

traditional districting criteria on which to base its evaluation.

These criteria are discussed in the published work of Professor

1



Figure 1

North Carolina Congressional Districts, 1998

























Richard Morrill (Department of Geography, University of

Washington), and Professor Bernard Grofman (School of Social

Sciences, University of California, Irvine).

Professor Morrill is a political geographer and the foremost

geographic authority on districting procedures in the United

States today. His 1981 monograph, Political Redistricting and


Geographic Theory, includes a chapter entitled "Criteria for

Redistricting” which was consulted in the preparation of this

report. Professor Grofman is a political scientist and is among

the most recognized authorities from that discipline on

redistricting issues. Professor Grofman's "Criteria for

Districting: A Social Science Perspective" published in the UCLA

Law Review in 1985 is perhaps the most exhaustive evaluation of

redistricting criteria published in the past twenty-five years.

(Additional sources detailing districting criteria include Dixon

1982; Morrill 1982, 1987 and 1994; Cain 1984; Butler and Cain

1992; Grofman et al., 1992; Grofman 1993; Pildes and Niemi 1993).

REDISTRICTING CRITERIA -


What follows is an evaluation of North Carolina's twelve

congressional districts on the basis of selected criteria

including equal population, contiguity, compactness, the

integrity of local government boundaries, and continuity of

representation. It should be noted at the outset that it is

virtually impossible for a redistricting plan to simultaneously

satisfy all criteria perfectly or completely. In some cases, the

4







ov) ® ®

real-world application of two criteria may contradict one

another. In other cases, data and real-world constraints limit

the degree to which one or more criteria may be simultaneously

satisfied. The preeminent criterion for evaluating redistricting

plans is population equality which stems from the United States

Constitution. It therefore carries far greater weight in the

evaluation of districts than secondary criteria such as

compactness or the non-subdivision of local political units.

Thus, a congressional redistricting plan which includes

exceptionally compact districts with widely varying populations

would be found unacceptable.

Some explanation of each criterion's purpose precedes the

North Carolina specific evaluation.

1)Equality of Population. The "equality of population" criterion

stems from the U.S. Constitution and it therefore must carry

substantial, if not preeminent, weight in the development of all

redistricting plans. Since the 1960s the legally permissible

variations between district populations have declined

substantially. Concomitant improvements in technology and the

detail of the data provided by the U.S. census have allowed ever-

greater adherence to the principal of one-person-one-vote.

Population equality between districts may be measured by

multiple indicators. The "total deviation" (also referred to as

the overall range) is defined as the population difference

between the smallest and largest districts (see Grofman 1985:

5





® »
175, for the total deviations of districts existing in 1983, and

Rayburn and Leib 1994: 23, for the total deviations existing in

1993). The "maximum deviation" is defined as the largest

absolute (+ or =) population deviation among a jurisdiction's

districts relative to the optimal population (total

population/number of seats) to be allocated to each district.

Also pertinent is the mean or average of all district deviations

from the ideal population. These measures may be expressed in

terms of absolute numbers and percents.

The maximum permissible population deviation of districting

plans depends on their geographic scale - whether, for example,

the districts are used to elect members of the U.S. House of

Representatives, a state legislature, or a city council. Due to

the limits of both the census of population data and geography,

maximum allowable deviations are generally greater the more local

the jurisdiction being evaluated. But congressional districts

are expected to have total deviations of less than 1% (Morrill

1981; Grofman 1985; Grofman et al., 1992). As determined by

Rayburn and Leib (1994: 23), the districting plans in all states

in 1993 were in compliance with this criterion with the largest

total deviation determined for Georgia at 0.94%.

The ideal population for each congressional district in

North Carolina is 552,386 (1990 state population of 6,628,637 /

12 districts = 552,386.42) (Table 1). The average absolute (+ or

-) deviation of North Carolina's twelve congressional districts

is 361 individuals, or 0.065% of the ideal population to be

6





Table 1

Population Equity Between North Carolina
Congressional Districts Existing in 1998%

Absolute Percent
District # Total Population Deviation? Deviation?






l 552,161 225 -0.041%

2 ; 552,152 234 -0.042

3 552,622 236 +0.043

4 551,842 544 -0.098

5 552,084 302 «0.055

6 552,171 215  =0.039

7 552,382 4 -0.,001

8 553,143 757 +0.137

9 552,615 228 +0.041

10 553,333 947 +0.171

11 552,089 297 -0.054

12 552,043 343 -0,.062

Total 6,628,637 -— -—

Mean 552,386 361 0.065%

Total Deviation® 1,491 0.270%

Maximum Deviationd 947 0.171%

  *Based upon the 1990 Census of Population.
2 Absolute difference between district and mean of 552,386.
Percentage difference between district and mean of 552,386.

© The total deviation is the difference between the largest (#10)
and smallest (#4) district.

The maximum deviation constitutes that district most deviating
from the ideal population.

SOURCE: Calculated by author from data provided by State of North
Carolina and reflecting the 1990 Census of Population.

-





allocated to each district. Among the districts, District 7 has

the smallest deviation at a mere 4 individuals (0.001%), and

District 10 the largest at 947 individuals (0.171%). District

10's deviation thus constitutes the Maximum Deviation for the

state's congressional districts. The Total Deviation for the

twelve districts is 0.270%.

In terms of the population equality criterion, North

Carolina's present congressional districts are well within

accepted guidelines. Their level of population equality is

therefore evaluated favorably on this criterion. But it should

be noted that 1990 census of population data is now eight years

old. Based upon population projections by the North Carolina

Office of State Planning, the state's 1997 population was nearly

12 percent greater than enumerated in 1990. That office further

projects the next Census, to be undertaken in a little over two

years, will enumerate 7.7 million North Carolinians, or 16.4

percent more individuals residing in the state than were counted

in 1990. Thus, while the constitutional purpose of the census of

population is to aid the reapportionment and redistricting

process and the 1990 census should be used for such comparisons,

malapportionment is clearly a result of using eight year old

data... It. dls thebetire true that any subsequent delineation of

North Carolina's 12 congressional districts prior to the 2000

census will be hampered in achieving compliance with the

preeminent criterion of the districting process, that of equal

population between districts.





2)Contiquity.


A majority of states (37), including North Carolina, require

that legislative districts be contiguous (Grofman 1985). A

district is typically defined as contiguous if every part of the

district is accessible to all other parts without traveling into

a second district. This requirement has rarely generated

controversy in the past. When controversy has emerged, the focus

of contention has generally pertained to areas dissected by water

features and whether bridge connections are sufficient to

constitute contiguity (see Grofman 1985: 84).

All of the North Carolina's 1998 districts are contiguous,

and are thus eviduated favorably on this criterion. Second, on

this criterion the present plan compares very favorably with the

state's 1992 congressional districts which generated controversy

pertaining to the contiguity of the 6th and 12th districts

(Grofman 1993: 1261). The practical contiguity of Districts 1,

2, 5 and 10 was also substantially improved. For example, the

proruption of District 2 into District 1 in Halifax County in the

1992 plan no longer exists. In the 1998 plan the mutual boundary

of Districts 1 and 2 is the Halifax County-Nash County boundary.

A second example pertains to the no longer existing proruption of

District 5 into District 10. The boundary between these two

districts now entirely follows county boundaries.







3)The Allocation of Local Government or Electoral Units.


The non-division of local political units in their

allocation to districts has traditionally been viewed as a

legitimate though secondary goal of the districting process.

Counties, for example, may constitute political systems in and of

themselves. Political parties frequently use counties as

subdivisions for their organization at the "grassroots level."

And citizens may have strong allegiances to their respective

counties, most particularly in the South (Webster 1984). But it

is also true that the equal population criterion carries

substantially greater weight in all evaluations of districting

plans than efforts to limit county subdivisions. Thus, any

county which has a population above the ideal population per

district will almost certainly be divided into two or more

districts in a system which employs single-member districts. And

at times it may be appropriate and/or necessary to subdivide

other counties with lesser numbers of residents to achieve

compliance with the equal population criterion.

The 1992 congressional districts in North Carolina divided

44 off the state's 100 counties (Webster 1995). The 1998

congressional districts reduce this number to 23, a 48% percent

decline in the number of county divisions. Thus, from the

perspective of county divisions, the 1998 districts are superior

to the 1992 districts on this criterion.

The building block units used to delineate congressional

districts differ between states. While some states rely on

10







census units such as blocks or tracts, others use voting

districts or precincts (Raburn and Leib 1994: 23). Seventy-nine

of North Carolina's 100 counties are subdivided by voting

precincts which follow the boundaries of other units of census

geography such as blocks or tracts. It should be a goal of

districting plans to avoid subdividing voting precincts wherever

possible. If these units are subdivided by district boundaries,

additional polling units or ballot forms may be required. Such

changes typically lead to voter confusion and frustration.

As of October 1, 1996, there were a total of 2,531 election

precincts in the state of North Carolina. The 1992 districts

divided 80 precincts. The 1998 districts reduce this number to

only 2. Thus, the 1998 districts are superior to the 1992

districts in their minimal number of voter precinct divisions.

Of the 31 counties which do not include census voter

precincts, only one (Beaufort County) is not allocated to a

congressional district in its entirety. This division employed

township boundaries which are vastly superior to the use of

census blocks or tracts which may have little significance to

human patterns of interaction or governance.

4) Geographic Compactness.


Background

Unlike the equality of population criterion, the geographic

compactness criterion has no foundation in the U.S. Constitution.

But it has long been viewed as a legitimate criterion for

11





evaluating redistricting plans, and is included as a goal in



approximately half of all state constitutions. The state of

North Carolina is not among those states legally requiring that

the members of legislative bodies be elected from compact

districts (Grofman 1985). But given recent Supreme Court

decisions, the compactness criterion has received renewed

attention.

There is substantial legal and academic disagreement over

the value of mandating districts be compact. First, requiring

compact districts does not guard against the political or racial

manipulation of electoral space. The geographic resolution and

quality of the data now provided by the census in conjunction

with the increasing sophistication of computer technology may

allow compact districts to be delineated which are also directly

discriminatory to a population group. Thus, while irregularly

shaped districts may suggest manipulation, highly compact

districts may also be intentionally detrimental to a population

group (see both Morrill 1981, and Grofman 1985).

Second, in the real-world perfectly compact districts are an

impossibility. Most compactness indices assume that an optimal

district will be a perfect circle, the most compact of geometric

shapes. But if circles were employed to subdivide the space of a

jurisdiction, some of the jurisdiction's area would not be

allocated to districts, but be left in the gaps between circles.

Thus, circular districts are an unrealistic abstraction without

direct application to real-world circumstances.

12





Third, the building blocks of redistricting plans, blocks,



block groups, tracts, or voting precincts, are frequently

delineated by streets and are oftentimes square or rectangular in

shape. The shapes of these building blocks therefore largely

precludes circular districts from being formed.

A fourth concern limiting real world compactness is the

constitutional criterion of equality of population discussed

above. It is of substantially greater legal necessity to comply

with this criterion than to create perfectly compact districts.

To meet this constitutional criterion map makers may be forced to

create districts of less than perfect compactness. As stated by

Professor Morrill (1981: 22):

A too simplistic application of . . . geographic

compactness measures is foolish, especially where the

distribution of the population is uneven, perhaps strung

out along roads or railroads. Travel may be easier and

cheaper in some directions than others, such that an

elongated district astride a major transportation

corridor might in fact be the most compact in the sense

of minimum travel time for a representative to travel

around the district.

In short, it must be stressed that legislators represent

people, and the distribution of the population on the landscape

is substantially uneven. Given this unevenness it is largely an

impossibility to create districts which are perfectly compact and

13





include equal numbers of people.

Finally, there are a host of different geographic

compactness measures available (see Niemi, et al., 1990 for a

description of 24 different measures). In general these methods

concentrate on a district's perimeter, areal dispersion, or

population distribution in their design.

Two compactness measures are used in the present report,

both of which are now among the most commonly recognized and

applied by legal and academic scholars. Their elevated

recognition is due largely to their calculation and application

in a 1993 Michigan Law Review article by Richard Pildes and

Richard Niemi. Both authors are among the most recognized

authorities on redistricting and the courts in the United States

today. The purpose of their article was to measure the

compactness of all congressional districts in the United States

existing in 1993 in such a manner as to parallel the discussion

in the Supreme Court's decision in Shaw v. Reno (1993). Adding

to the relevance of this article and its methods was its citation

in Bush v. Vera, 1996, as supporting evidence for the Supreme

Court's findings that three congressional districts in Texas were

unconstitutional.

The first measure is based on the geographic "dispersion" of

a district. To calculate this measure a circle is circumscribed

around a district. The reported coefficient is the proportion of

the area of the circumscribed circle which is also included in

the district and ranges from 1.0 (most compact) to 0.0 (least

14





compact).

The second measure is based upon the calculation of the

"perimeter" of the district. The reported coefficient is the

proportion of the area in the district relative to a circle with

the same perimeter and ranges from 1.0 (most compact) to 0.0

(least compact). |

Pildes and Niemi( 1993: 564) provide some guidance on the

evaluation of both measures. With respect to the dispersion

compactness measure, they suggest "low" is equal to or less than

0.15. On the perimeter compactness measure they suggest that

"low" is equal to or less than 0.05. By suggesting these

guidelines they caution that "we do not imply that all districts

below those points, or only those districts, are vulnerable after

Shaw." These cutoff points are therefore best characterized as

general guidelines and they should not be employed as absolute

indicators of acceptable or unacceptable levels of compactness.

Supporting their statement is the fact that in 1538 ten

congressional districts in the U.S. are below the 0.05 benchmark

on the perimeter measure (e.q., New York's 12th (0.021) and

Texas' 6th (0.027)), and 13 are below the 0.15 benchmark on the

dispersion measure (e.g., Florida's 22nd (0.0331) and

California's 36th (0.042)).

Instructive Comparisons

In addition to the compactness scores for each of North

Carolina's congressional districts, additional scores were

15





calculated for hypothetical and real-world units. The purpose



for calculating these additional scores is to provide comparisons

for the evaluation of the compactness scores for North Carolina's

congressional districts. Thus, Figure 3 displays a square

circumscribed by a circle. While most would visually evaluate a

square district as a highly compact, the geographic dispersion

score for the square is .640, and its perimeter compactness score

is .785. Similarly, Figure 4 displays a rectangle circumscribed

by a circle. Again, while most viewers would visually evaluate a

rectangular district as substantially compact, the dispersion

compactness of the rectangle is .431 and its perimeter

compactness is .641.

Table 2 provides further comparisons in tabular format.

Among those units for which the two compactness indicators were

calculated are Camden, Davie and Swain counties, the cities of

Greensboro, Charlotte and Winston-Salem, and two precincts each

in the cities of Greensboro, Charlotte, and Winston-Salem. These

additional comparisons are indicative of the contrast in levels

of the two compactness measures for the same jurisdiction, the

perimeter compactness measure generally being lower in magnitude

for real world geographic or political units. Thus while

Charlotte's dispersion compactness measure is quite high at .571,

its perimeter compactness coefficient is much lower at 0.079.

Similar contrasts in the magnitudes of the two coefficients were

also found to characterize both Greensboro and Winston-Salem.

The purpose for calculating the selected compactness

16





Figure 3
Compactness of a Square







{1




Area of Square = 16 square inches
Perimeter of Square = 16 inches
Area of Circle = 25 square inches
Perimeter of Circle = 17.741 inches
Dispersion Compactness = .640
Perimeter Compactness = .785





Figure 4
Compactness of a Rectangle







8T



Area of Rectangle = 10 square inches
Perimeter of Rectangle = 14 inches
Area of Circle = 23.21 square inches
Perimeter of Circle = 17.074 inches
Dispersion Compactness = .431
Perimeter Compactness = .641







Table 2

Comparator Compactness Indicators for Geographic
Units in North Carolina



Geographic Dispersion Perimeter
Unit Compactness Compactness

North Carolinax* 0.268 0.382

Selected Counties:

Camden County* 0.173 0.242

Davie County=* 0.540 0.410

Swain County#* 0.321 0.265

Selected Cities:

Greensboro 0.444 0.113

Charlotte* 0.571 0.079

Winston-Salem 0.548 0.075

Precincts in Greensboro:
Number 119 0.297 0.173
Number 139 0.289 0.207

Precincts in Charlotte:
Number 10X2 0.179 0.212
Number 195 0.154 0.213

Precincts in Winston-Salem:
Number 1439 0.211 0.199
Number 1446 0.184 0.114

  *Units for which there are accompanying figures.
Source: Compactness measure coefficients calculated by University of Alabama Cartography Lab using U.S. Bureau of the Census TIGER Files.

19





Figure 5

North Carolina



Dispersion Compactness = .268
Perimeter Compactness = .382










IC




  Dispersion Compactness = .173

Perimeter Compactness = .242

Figure 6



~ Camden County, North Carolina.












<C


  Dispersion Compactness = .540
Perimeter Compactness = .410

Figure 7

‘Davie County, North Carolina










Figure 8

~ Swain County, North Carolina



ee





£C





    Dispersion Compactness = .321
Perimeter Compactness = .265
mtr et —— i ————








Figure 9

_ City of Charlotte










ve



Dispersion Compactness = .571
Perimeter Compactness = .079











® »
coefficients of precincts in the three cities is to demonstrate

the constraints posed by the building-block units used by the

State of North Carolina in delineating its congressional

districts. On the dispersion compactness measure the

coefficients range from a low of 0.154 to a high of 0.297 (Table

2). On the perimeter compactness measure the scores range from a

low of 0.114 to a high of 0.213. These measures are significant

because building-block units of relatively low compactness will

generally result in districts of less compactness than districts

composed of highly compact building-block units.

Compactness of North Carolina's Congressional Districts

In 1992 the mean dispersion compactness of North Carolina's

twelve congressional districts was 0.280, with the range being

from a low of 0.045 for district 12 to a high of 0.440 for

district 6 (Table 3). The mean level of dispersion compactness

for the 1998 districts increased to 0.354. While the 12th

District continued to be the lowest among the state's 12

congressional districts, it increased to 0.109. District 7 had

the greatest level of dispersion compactness at 0.622. It should

be noted that District 7's level of compactness is nearly that of

the square displayed in Figure 3.

In 1992 the mean level of perimeter compactness for North

Carolina's twelve districts was 0.095 (Table 3). The perimeter

compactness coefficients ranged from a low of 0.014 for the 12th

district to a high of 0.319 calculated for the 4th district. The

25





Table 3

Compactness of North Carolina Congressional Districts
as Existing in 1992 and 19982

1998

Disper.®? Pperim.€

1992
District Disper.®? perim.C
  .254

«247
«350
.398
.136
.440
.287
.334
.281
«299
.288
. 045

.028

.061

. 055
+319
.080
.092
+052
.166
.070
.061
«143
.014

317
.407
.407
.450
.206
.362
.622
«345
«292
.402
«335
.109

«107
+176
129
«277
«130
«113
+325
+255
+193
«259
.306
.041

Mean .280 . 095 .354 .192

  SOURCE: Compactness measures for 1992 districts were calculated by Election Data Services. Compactness measures for the 1998 districts were calculated by the University of Alabama Cartography Lab. 2 Both the "dispersion" and "perimeter" compactness measures are discussed in Pildes and Niemi (1993). This article was cited in the Supreme Court's plurality decision in Bush v. Vera (June, 1996) as providing substantiation for its ruling that Texas congressional
districts 18, 29 and 30 were unconstitutional. The comparable indices for the three Texas districts prior to the decision were as follows: District 18: dispersion .3s, perimeter .01. District 29: dispersion .19, perimeter .01. District 30: dispersion .24, perimeter .02.
Perimeter measures are typically of lesser magnitude than dispersion scores. In 1993, 13% of all congressional districts had perimeter scores below .10. In 1998 9% of all districts are below .10 on the perimeter compactness measure.

This measure ranges from 0.0 (least compact) to 1.0 (most compact). To calculate this measure the district is first circumscribed by a circle. The coefficient is the percentage of the area in the
circumscribed circle which is also contained in the district.
© This measure ranges from 0.0 (least compact) to 1.0 (most compact). To calculate this measure the perimeter of the district is first calculated. The area of a circle with this perimeter is then calculated. The reported coefficient is the proportion of the area in the district relative to the circle. The equation used is (((4 X Pi) X Area of District) / (District's Perimeter YX)





mean level of perimeter compactness for the 1998 districts is

0.192. These coefficients tages from a low of 0.041 for the

state's 12th district to a high 0.325 for the 7th district.

Table 4 presents the absolute and percentage change in the

levels of compactness on both the dispersion and perimeter

measures for North Carolina's 12 congressional districts. The

average district in North Carolina increased its level of

dispersion compactness by 0.075 or 39.1%. The increase in the

level of District 12th's dispersion compactness was greatest at

142.2%. District 6's level of dispersion compactness actually

fell by nearly 18 percent. This finding underscores that changes

in one district very frequently lead to changes in other

districts, and the direction of such successive impacts will not

necessarily be in the desired direction.

The average level of perimeter compactness for the state's

1998 districts is also well above what existed in 1992 (Table 4).

The mean district's level of compactness rose 0.097 or nearly

172%. District 7's increase nas the greatest at 525%. District

4's perimeter compactness fell by over 13%.

North Carolina Compared to Other States

In addition to North Carolina, other states have made

adjustments in their congressional districts since 1992. Table 5
compares the means for both compactness scores in 1992 and 1998

for the state's of North Carolina, Florida, Georgia and Texas.

These coefficients are invaluable because they suggest the degree

27





Table 4



Change in Compactness of North Carolina Congressional Districts
as Existing in 1992 and 19982







District Change in Compactness
No. Dispersion Perimeter

Absolute Percent Absolute Percent

1 +.063 +24.8% +.079 +282.1%

2 +.160 +64.8% ++3115 +188.5%

3 +,057 +16.3% +.074 +134.5%

4 +.052 +13.1% -.042 -13.2%

5 +.070 +51.5% +.050 +62.5%

6 -, 078 17.7% +.021 +22.8%

7 +.335 +116.7% +.273 +525.0%

8 +,011 +3.3% +.089 +53.6%

9 +.011 +3.9% +.123 +175.7%

10 +.103 +34.4% +.,198 +324.6%

11 +.047 +16.3% +.,163 +114.0%

12 +.064 +142.2% +.027 +192.8%

Mean +.,075 +39.1% +.007 +171.9%



SOURCE: Calculated by author from data ‘in Table 3s

@ Both the "dispersion" and "perimeter" compactness measures are discussed in Pildes and Niemi (1993). See Table 3 for definitions of measures.

28







Table 5

Increase in North Carolina Congressional District
Compactness in Comparison to Florida, Georgia and Texas



Mean Dispersion Mean Perimeter
Compactness Absolute Percent Compactness Absolute Percent State 1992 1998 Change Change 1992 1998 Change Change

North Carolina .280 .354 © +0.074 26.4% . 095 .192 +0.097 102.1% (N=12)

Florida .314 «323 +0.009 2.9% .203 .207 +0.004 2.0% (N=23)

Georgia .347 .400 +0.053 15.3% .181 .272 +0.091 50.3% (N=11)

Texas .310 322 +0.012 3.9% «131 .164 +0.033 25.2% (N=30)



SOURCE: Calculated by author.

29







of change impacting all districts within each state. In short,

the redrawing of a single district may impact most other

districts in a state. Thus, while North Carolina's 12th district

was a primary focus of legal challenges, no district in the state

was left untouched by the changes to its design.

North Carolina's mean dispersion compactness coefficient is

0.354 for the 1998 districts, higher than both Florida and Texas

(Table 5). Its mean dispersion compactness rose by 0.074, or

26.4% between the 1992 and 1998 plans. This mean increase in

compactness was the greatest of the four states examined.

North Carolina's mean perimeter compactness coefficient is

0.192 for the 1998 districts, higher than that for Texas (0.164)

and similar to that calculated for Florida (0.207) (Table 5). In

terms of absolute change, North Carolina's mean level of

perimeter compactness rose from 0.095 to 0.192, or by 0.097. In

terms of both absolute and percentage change, this level of

increase was the greatest among the four states examined,

doubling the percentage increase of second place Georgia.

Table 6 specifically compares the levels of compactness for

North Carolina's 12th congressional district with other

successfully challenged districts in Florida, Georgia and Texas.

As can be ascertained from the table, the increase in the 12th

district's level of dispersion compactness is second only to

Georgia's 11th district among the seven examined. While the 12th

district experienced the smallest level of increase among the

seven districts examined on the perimeter compactness measure,

30





State

Table 6

Increase in Congressional District Compactness
of Selected® Congressional Districts in Florida, Georgia and Texas

Dispersion
Compactness

1992 1998
Absolute

Change

Percent

Change

Perimeter
Compactness

1992 1998
Absolute

Change
Percent

Change

North Carolina

District

Florida
District

Georgia
District

District

a2

3

2

11

0.045

0.111

0.323

0.169

0.136

0.541

0.444

+0.064

+0.025

+0.218

+0.275

+142.2%

$22.5

0.014

0.011

0.088

0.065

0.041

0.050

0.411

0.259

+0.027

+0.039

+0.323

+0.194

+192.9%

+354.5

+367.0

+298.5

Texas

District 18 0.356 0.335 -0.021 0.011 0.151 +0.140 + +1,272.7

District 29 0.194 0.384 +0.190 0.008 0.178 +0.170 '+2,125.0

District 30 0.243 0.383 +0.140 +57.6 0.016 0.180 +0.164 +1,025.0

  SOURCE: Calculated by author.
8 North Carolina's 12th District was ruled unconstitutional on June 13, 1996. Florida's 3rd District was ruled unconstitutional on April 17th, 1996. Georgia's 11th District was ruled unconstitutional on June 29th, 1995, and its 2nd District was found likewise on October 30, 1995. Texas' 18th, 29th and 30th Districts were ruled unconstitutional on
June 13th, 1996.





its increase was substantial at 192.9%.

The levels of compactness for North Carolina's twelve

districts are substantially increased in the 1998 districts as

compared to the 1992 districts. Thus, the system as a whole

experienced a substantial increase in compactness. At present

eleven of the state's twelve districts are above the benchmarks

suggested by Niemi and Pildes (1993) as indicative of "low"

compactness. While the 12th congressional district's level of

compactness remains below the benchmarks, its level of increase

is comparable to the redrawn districts in other states.

Secondly, and in reference to the quote from Professor Morrill on

page 13, evaluations of the 12th district's geographic

compactness should also consider its travel time compactness.

Travel times are rarely a direct function of straight line

distances. Rather the available travel modes and directness of

traffic corridors between points must also be considered. Thus

it is highly probable that the time needed for the 12th

district's representative to travel to meet constituents at

opposite ends of the district is substantially less than in many

other more geographically compact districts.

5)Continuity of Representation.


It is counterproductive to fundamentally alter the system of

districts in a state each time new districts are delineated.

Wholesale change may lead to voter confusion and frustration, and

thus non-participation. While the goal of preserving the

32





integrity of the district system may be difficult if a state has

experienced substantial population growth in the decennial

districting cycle, boundary "stability helps to develop and

maintain a sense of identity with districts" (Morrill 1981: 27).

The goal of maximizing the continuity of representation is

particularly important when changes occur in the middle of the

normal decennial redistricting cycle. Thus the voters of the

state of North Carolina have now experienced two significant

changes to their district association in the past seven years,

with a third necessarily coming for the 2002 election cycle.

It is clear that the 1998 congressional districts are

significantly different from those employed in the elections of

1992, 1994, and 1996. It is also clear that effort was expended

to maintain the geographic cores of the 1992 districts in the

1998 remap. Table 7 presents the proportion of each district's

area in 1992 which remains in the 1998 districts. On average

76.4% of the area in each of the state's twelve districts in 1992

was preserved in the 1998 districts. This proportion ranges from

a high of 96.7% for the 11th district to a low of 41.6% for the

12th district. Thus, the 12th district was more dramatically

redrawn than any other district in the state. By comparison,

when Florida's 3rd district was redrawn under similar

Circumstances, 48.4% of the area of the early 1990s district was

preserved in the current district (see Figures 10 and 11).

The changes created by the redrawing of North Carolina's

congressional districts also shifted one-quarter of the state's

33







Table 7

Proportion of Area in 1992 Districts That
Remains in the 1998 Districts

Percentage of 1992
Area That Remains in





District # the 1998 Districts

3 65.3%

2 70.3%

3 75.2%

4 75.5%

5 66.3%

6 81.8%

7 88.3%

8 86.9%

o 90.0%

10 79.4%

il 896,7%

32 41.6%

Mean | 76.4%



SOURCE: Calculated by the University of Alabama Cartography
Laboratory.

34





Figure 10

Florida District 3, 1992



7%
3

        Dispersion Compactness = .111
Perimeter Compactness = .010









9¢








Figure 11

Florida District 3, 1998
fer ih =

A ]











Dispersion Compactness = .136
Perimeter Compactness = .049








o »
population to a different district, a very substantial movement

of the population between districts even for a decennial

redistricting (Table 8). The impact on individual districts

ranged from a low of 7.6% of District 11's population being

shifted, to a high of 40.5% for District 2's population.

Districts 1,2, 4, 3, and.12 all had more than 30% of their

residents shifted to another district in the 1998 remap.

Clearly, such substantial shifts from one representative to

another can be unsettling for many constituents.

Attention to balancing the legal necessity for change with

the interests of those represented is appropriate in all

districting cycles, but most particularly for those changes in

the middle of the normal decennial cycle. The changes in the

1998 districts as compared to the 1992 districts cannot be

characterized as minimal. Rather I would characterize the change

as moderate because attention was paid to maintaining the

geographic cores of the 1992 districts (I would characterize

extreme change as a plan that paid no heed to the existing

geographic cores of the former districts). Thus, on this

criterion I evaluate the efforts of those producing the remap

favorably because of their balance in complying with the June

1996 court order while preserving a moderate level of continuity

of representation for residents of the state's twelve

congressional districts.



Table 8

Population Shifts from 1992 Districts in the
Drawing of the 1998 Districts=*

Number of People Percentage of 1992
Shifted from District Population

District # 1992 District Shifted


1 180,984 32.8%

2 223,685 40.5%

148,886 26.9%

194,395 35.2%

177,687 32.2%

143,065 25.9%

155,585 28.2%

81,410 14.7%

53,587

118,426

42,110

174,471



Total 1,694,291 (25.6% of state's

Mean 141,191



*Based upon the 1990 Census of Population.
SOURCE: Provided by North Carolina Attorney General's Office.







Conclusions


The purpose of this report was to examine the twelve 1998

congressional districts in the state of North Carolina from the

perspective of five traditional redistricting criteria. Where

appropriate the current districts were compared with those first

used in the 1992 congressional elections. The findings of this

report are summarized below.

1) Equal Population. The total deviation of the 1998

districts is 0.270%, well below the generally accepted guideline

of less than 1.0%. Thus the present districts are evaluated

positively on this criterion.

2) Contiguity. All twelve of North Carolina's 1998 districts

are contiguous and are therefore evaluated positively on this

criterion. Secondly, the level of contiguity in the 1998

districts is substantially increased over that existing in the

1992 districts, particularly as this criterion relates to the 6th

and 12 districts. Thus, when considering the change between the

1992 and 1998 districts, the current plan is evaluated very

favorably.

3)The Allocation of Local Government or Electoral Units.

The 1998 districts reduce the number of divided counties from 44

in 1992 to 23 at present. This is a substantial reduction and

the present plan is therefore evaluated favorably from this

perspective. Secondly, the 1998 districts effectively employed

voting precincts as building blocks with only 2 of the 2,351

39







census defined precincts in .the state being divided. Of the 31

counties not subdivided by census defined voting precincts, only

one was divided in the districting process. In this case

(Beaufort County), township boundaries were used, which are far

better building blocks than census blocks or tracts.

4) Geographic Compactness. The level of compactness

determined for the 1998 districts is substantially improved over

that existing in the 1992 districts. At present only the 12th

congressional district is marginally below the suggested

guidelines for judging "low" compactness. But such judgements

should also consider the rate of change for the 12th, which was

found here to be very substantial and in line with the magnitude

of change experienced for other districts ordered redrawn by the

court system. Secondly, the 12th's level of compactness is

similar to other existing districts not under challenge (e.q.,

Florida's 22nd, see Figure 12). Finally, Professor Morrill's

1981 argument that elongated districts which center upon

transportation corridors may be highly compact in terms of travel

time is pertinent.

5)Continuity of Representation. The redrawing of North

Carolina's congressional districts in 1997 introduced substantial

change in the state's system of representation. On average, 24%

of the area in the 1992 districts was allocated to a different

district on the 1998 map. Most dramatic was the impact upon the

12th congressional district - the 1998 district includes only 42%

of the original area of the 1992 district. Similarly, nearly 26%

40







17


Figure 12

Florida District 22, 1998






ST 5 oi : ge

Dispersion Compactness = .033
Perimeter Compactness = .047 fo a yg








of North Carolina's population was moved to a different district
in the 1998 plan as compared to the 1992 map. The magnitude of
this change is substantial, most particularly in a mid-decennial
redrawing of the state's congressional districts. In short,
those undertaking the remap appear to have sought balance between

the necessity of district boundary change and the preservation of
representational continuity.

42







References

Butler, D. and Cain, B. (1992), Congressional Redistricting: Comparative and Theoretical Perspectives, New York, NY:
MacMillan.





Cain, B. (1984). The Reapportionment Puzzle. Berkeley: University of California Press.


Dixon, R. G. (1982), "Fair Criteria and Procedures for Establishing Legislative Districts," in B. Grofman, A. Lijphart, R. B. McKay, and H. A. Scarrow eds., Representation and Redistricting Issues, PP. 7-19. Lexington, Mass. : Lexington Books.

Duncan, P. D., and Lawrence, C. C. (1997), Politics in America, 1998: The 105th Congress, Washington, D.C.: Congressional Quarterly.





Grofman, B. (1985), "Criteria for Redistricting: A Social Science Perspective," UCLA law Review, 33: 77-184.

Grofman, B (1993), "Would Vince Lombardi Have Been Right If He Had Said, 'When It Comes to Redistricting, Race Isn't Everything, Its the Only Thing'?," Cardozo Law Review, 14: 1237-1276.

Grofman, B., Handley, L., and Niemi, R. GC. (1992), Minority Representation and the Quest for Voting Equality, Cambridge, NY: Cambridge University Press.


Morrill, R. L. (1981), Political Redistricting and Geographic Theory, Washington, D.C.: Association of American Geographers.


Morrill, R. L. (1982), "Redistricting Standards and Strategies After Twenty Years," Political Geography Quarterly, 1: 361-369.

Morrill, R. L. (1987), "Redistricting, Region, and Representation," Political Geography Quarterly, 6: 241-260.

Morrill, R. L. (1994), "Electoral Geography and Gerrymandering: Space and Politics," in G. J. Demko and W. B. Wood eds., Reordering the World, PP. 101-119, Boulder, CO: Westview Press.


Niemi, R. G., Grofman, B., Carlucci, C. and Hofeller, T. (1990), "Measuring Compactness and the Role of a Compactness Standard in a Test for Partisan and Racial Gerrymandering," Journal of Politics, 52(4): 1155-11381.



Pildes, R. H. and Niemi, R. GC. (1993), "Expressive Harms, "Bizarre Districts," and Voting Rights: Evaluating Election- District Appearances After Shaw V. Reno," Michigan Law Review, 92 (3): 483-587,

43





Raburn, R., and Leib, J. I. (1994). "Congressional District Building Blocks: Choice and Impact in the 1990s," Comparative State Politics, 15(2): 17-27.

Webster, G. R. (1984), "The Spatial Reorganization of County
Boundaries in Kentucky," Southeastern Geographer, 24(1): 14-29.

Webster, G. R. (1995), "Congressional Redistricting in the Southeastern U.S. in the 1990s," Southeastern Geodrapher, 35(1): 1-21.







APPENDIX

45





| Figure A-1

North Carolina District 1, 1992



—_—








Dispersion Compactness = .254
Perimeter Compactness = .028








Figure A-2

North Carolina District 2, 1992





    Dispersion Compactness = .247
Perimeter Compactness = .061








Figure A-3
North Carolina District 3, 1992











      Dispersion Compactness = .350
Perimeter Compactness = .055







Dispersion Compactness = .398
Perimeter Compactness = .319



Figure A-4

_Norih Carolina District 4, 1992











Figure A-5

~ North Carolina District 5, 1992

i]




Dispersion Compactness = .136
Perimeter Compactness = .080








Figure A-6

_ North Carolina District 6, 1992









Dispersion Compactness = .440
Perimeter Compactness = .092












Dispersion Compactness = .287
Perimeter Compactness = .052

Figure A-7

North Carolina District 7, 1992













Figure A-8

_ North Carolina District 8, 1992



irr ~——— —





          Dispersion Compactness = .334

Perimeter Compactness = .166




Figure A-9

North Carolina District 9, 1992







        Dispersion Compactness = .281
Perimeter Compactness = .070










Figure A-10

North Carolina District 10, 1992







Dispersion Compactness = .299
Perimeter Compactness = .061



Figure A-11

North Carolina District 11, 1992





Dispersion Compactness = .288
Perimeter Compactness = .143






Figure A-12

North Carolina District 12, 199



— ——— — —— —_—

Lert pd —








Dispersion Compactness = .045
Perimeter Compactness = .014





Figure A-13
‘North Carolina District 1, 1998











Dispersion Compactness = .317
Perimeter Compactness = .107















Dispersion Compactness = .407
Perimeter Compactness = .176





N



Figure A-14



i



orth Carolina District 2, 1998

a


————————————————————











Figure A-15

_ North Carolina District 3, 1998



Lh ar Te —
rr so

og







Dispersion Compactness = .407
Perimeter Compactness = .129






    Dispersion Compactness = .450
Perimeter Compactness = .277



Figure A-16

North Carolina District 4, 1998
I = a

ne

Ei
~~ _























Dispersion Compactness = .206
Perimeter Compactness = .130

North Carolina District
Figure A-17

Fi NE tes



b A998.
















Figure A-18







  Dispersion Compactness = .362
Perimeter Compactness = .113









Figure A-19
. North Carolina District Zz 1998








Dispersion Compactness = .622
Perimeter Compactness = .325








Figure A-20



te i 2 gh




  Dispersion Compactness = .345

Perimeter Compactness = .255
————






Figure A-21
North Carolina District 9. HE gh



1908.
TE Se,






Dispersion Compactness = .292
Perimeter Compactness = .193









Figure A-22

_ North Carolina District 10, 1998



pe
a il





  Dispersion Compactness = .402
Perimeter Compactness = .259


















Figure A-23

North Carolina District 11, 1998







  Dispersion Compactness = .335
Perimeter Compactness = .306















Figure A-24

North Carolina District 12, 1998





— oe










  Dispersion Compactness = .109

Perimeter Compactness = .041


—— ee





Qualifications, Publications and Compensation.



My vita accompanies this report, and lists my qualifications and
all publications. My hourly fee is $100.

Testimony in Court or by Deposition in the past five years:

Dillard v City of Greensboro, Alabama (M.D. AL)

Cannon v Durham County Board of Elections, (E.D. NC)

Dillard v Baldwin County Commission (M.D. AL)

Stovall et al., v City of Cocoa, et al. (M.D. FL)

Rice v Bennett (Montgomery (AL) Co. Cir. Ct.)

Signed:

Lewd dL tL
Gerald R. Webster, Ph.D.

Professor of Geography
University of Alabama



Date:

fer Wd #4
